Jasonette-Web

Jasonette-Web is an implementation of JASON protocol, whose aim is to unbundle applications from devices by expressing everything in JSON, which then can be stored anywhere, transformed with any language, and transmitted anywhere, using any transport protocol.


You can build native iOS and Android apps using the JASON markup, and Jasonette-Web aims to replicate that experience on the web.

You can learn more about the iOS and Android versions at:

Demo

Just to demonstrate what’s possible, here are some demos you can try right now:

Features

JASON has a lot of things going on, and we can’t support everything from the beginning.

What Jasonette-Web supports

In terms of MVC (Model View Controller paradigm), the first version of Jasonette-Web implements MV (Model and View). This means it includes:

  1. Rendering of all the view components
  2. Dynamic rendering of inline data (under $jason.head.data) using templates (under $jason.head.templates)
  3. Mixins

What Jasonette-Web doesn’t support (yet)

It doesn’t yet implement the “Controller” part, which means it doesn’t yet implement:

  1. Actions: This means you can’t do things like $network.request or $require. However you CAN use mixins to fetch remote JSON instead, which is better.

Installation

<script src="https://www.celljs.org/cell.js"></script>
<script src="https://selecttransform.github.io/st.js/st.js"></script>
<script src="https://jasonette.github.io/Jasonette-Web/dist/jason.js"></script>
<link href="https://jasonette.github.io/Jasonette-Web/dist/jason.css" rel="stylesheet">

Usage

Syntax

1. Initialize

var app = Jason([Custom DOM attributes], [JASON markup])

2. Refresh

Once initialized, you can refresh the component’s content by:

  1. Selecting the element
  2. Calling _update([JASON markup]) on it

Example:

var app = Jason({id: "jason", $cell: true})
...
document.querySelector("#jason")._update({
  $jason: {
    head: {
      title: "hello"
    },
    "body": {
      "sections": [{ ... }]
    }
  }
})

Warning: Note that you MUST assign the Jason() result to a global variable to make sure it renders.

Quickstart

You can create a Jason View using the following method:

1. Basic

See it in action at demo/basic

var app = Jason({
  $cell: true,
  style: {
    width: "400px",
    margin: "0 auto"
  }
}, {
  "$jason": {
    "head": {
      "title": "Basic"
    },
    "body": {
      "header": {
        "title": "Basic Example"
      },
      "sections": [{
        "items": [{
          "type": "label",
          "style": {
            "padding": "10"
          },
          "text": "Item 1"
        }]
      }]
    }
  }
})

2. Custom

Customize the attributes of the root Jason node by passing HTML attributes:

var app = Jason({$cell: true, id: "some_id", class: "col-6"})

Any HTML attribute can be specified to customize your own

3. Advanced

The $cell: true comes from cell.js and it turns a JSON object into an HTML node. You must pass $cell:true to render the markup into the DOM.

However sometimes you may want to just generate a JASON markup WITHOUT turning it into a node. This may be the case when you want to compose the component into a larger app, or could be that you want to dynamically plug it in instead of immediately loading the component.

In this case you just don’t pass the $cell: true and store the variable. Then later you can use it.

var component1 = Jason();
var component2 = Jason();
var app = {
  $cell: true,
  $components: [component1, component2]
}

You can see more on this in the “multiple” demo code

What you can do with Jasonette-Web

Even without actions you can do a lot of things.

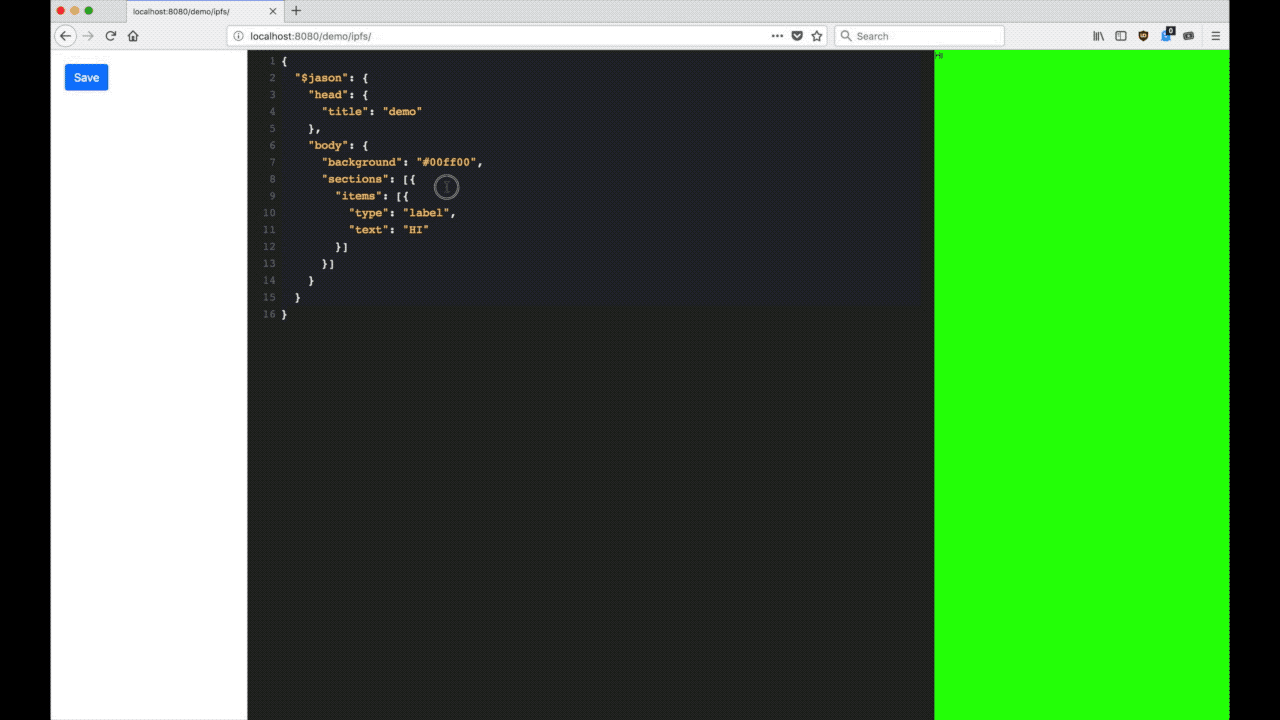

1. Editor

You can use this as a realtime Jasonette editor.


Try the demo at demo/ipfs

2. Plugin

Jasonette-Web is built on top of cell.js, which lets you describe an entire web app purely in JavaScript objects, with no HTML tags or no weird build tools and processes.

Therefore the Jasonette-Web component is instantly pluggable into any environment with ZERO hassle (No build steps. Literally just need to include 1 JS and 1 CSS file)

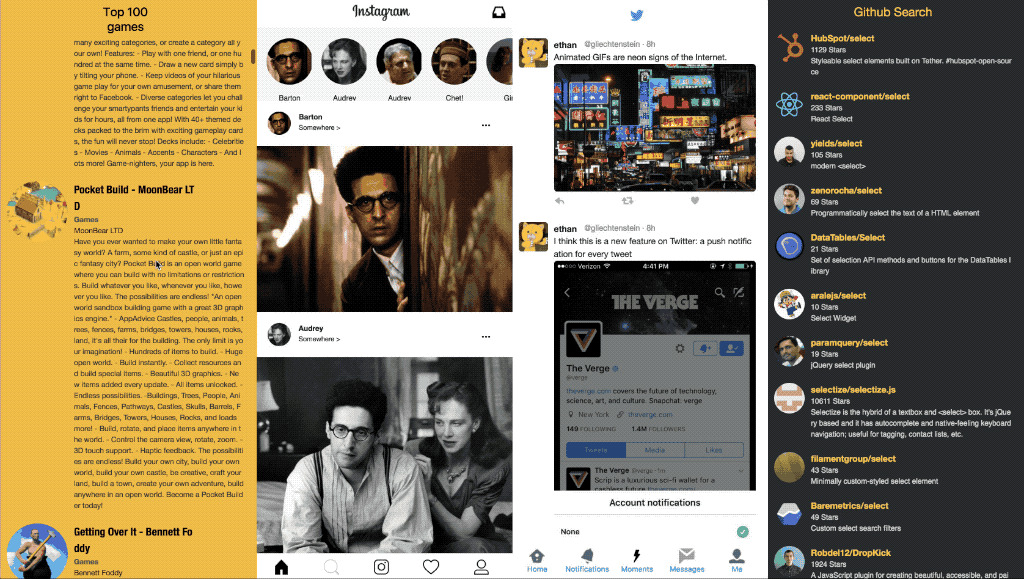

Here’s an example where a single page has 4 Jason components. Since each component is completely containerized thanks to cell.js, you can even drag and drop them anywhere simply using a drag and drop API.

Try the demo at demo/multiple


3. Mixins

The mixins feature is very powerful because you can load remote JSON in realtime. Used with inline data rendering, you don’t need to do $network.request or $require to render external content. Here’s an example:

{
  "$jason": {
    "head": {
      "title": "Example",
      "data": {
        "remote_items": {
          "@": "https://jasonbase.com/things/oXLK"
        }
      },
      "templates": {
        "body": {
          "sections": [{
            "items": {
              "": {
                ...
              }
            }
          }]
        }
      }
    }
  }
}

The mixin will automatically fetch the remote JSON url and it will be immediately accessible under the variable remote_items throughout the template parsing process.

To learn more about mixins, see:


Contribution

Anyone is welcome to contribute to the project. Here’s how the project is structured:

Repository Structure

  1. src folder is all you need to look at. That’s what contains all the files.
  2. dist folder is simply just a conatentation of JS files in the src folder so that it’s easier to use (include one JS instead of multiple)
  3. The dist folder is generated by running gulp. You will see in gulpfile that all it does is generate a concatenated JS and copy the JS and CSS into dist.

How the code works

2 main dependencies

Jasonette-Web is built on top of two main libraries:

  1. Cell.js: https://www.celljs.org
  2. ST.js: https://selecttransform.github.io/site/

Cell.js

To understand how the code works, you first need to understand how cell.js works.

But don’t worry, cell.js is a framework built to be intentionally simple and there are only 3 rules to remember, so it should take about 5 to 10 minutes to get started.

ST.js

ST.js is the main template engine that powers both Jasonette-iOS and Jasonette-Android, and now Jasonette-Web.

This library plays a great role in Jasonette since this is how most of the JSON transformation is carried out in Jasonette ecosystem.

Check out the documentation at https://selecttransform.github.io/site/

Project Structure

Now that we’ve gotten the basics out of the way, here’s how the project is structured:

Level 1: App

app.js: This is the starting point of the app. It creates the root node that contains everything else.

Level 2: Top level view elements

Top top level view elements of Jasonette are:

1. Header

Documentation: http://docs.jasonette.com/document/#header

Implementation: header.js

2. Sections

Documentation: http://docs.jasonette.com/document/#bodysections

Implementation: sections.js

3. Layers

Documentation: http://docs.jasonette.com/document/#bodylayers

Implementation: layers.js

Documentation: http://docs.jasonette.com/document/#bodyfooter

Implementation: footer.js

Level 3. Items, Layouts and Components

Hierarchy

Each section can contain:

Both a header and an item can be either

A layout can contain

Implementation
